PET jar injection molding machine is a specialized injection molding equipment designed to produce thick-walled PET preforms for jar-shaped containers. It differs from standard PET preform machines in cavity design, screw configuration, and processing parameters.
This guide explains what a pet jar making machine is, and what applications it serves for pet jars, pet plastic jars, and even pet jars with lids.
The article also covers technical advantages such as energy-efficient servo systems, low AA value design, and high-precision injection for pet plastic containers.
Finally, it provides practical selection criteria and real-world production cases from Haichen Machinery — a professional china pet jar making machine manufacturer with extensive experience in pet jar manufacturing machine solutions.
What Is a PET Jar Injection Molding Machine
- Pet jar preforms vs. standard bottle preforms
- Why pet jar manufacturing machines need a special screw
Pet jar preforms vs. standard bottle preforms

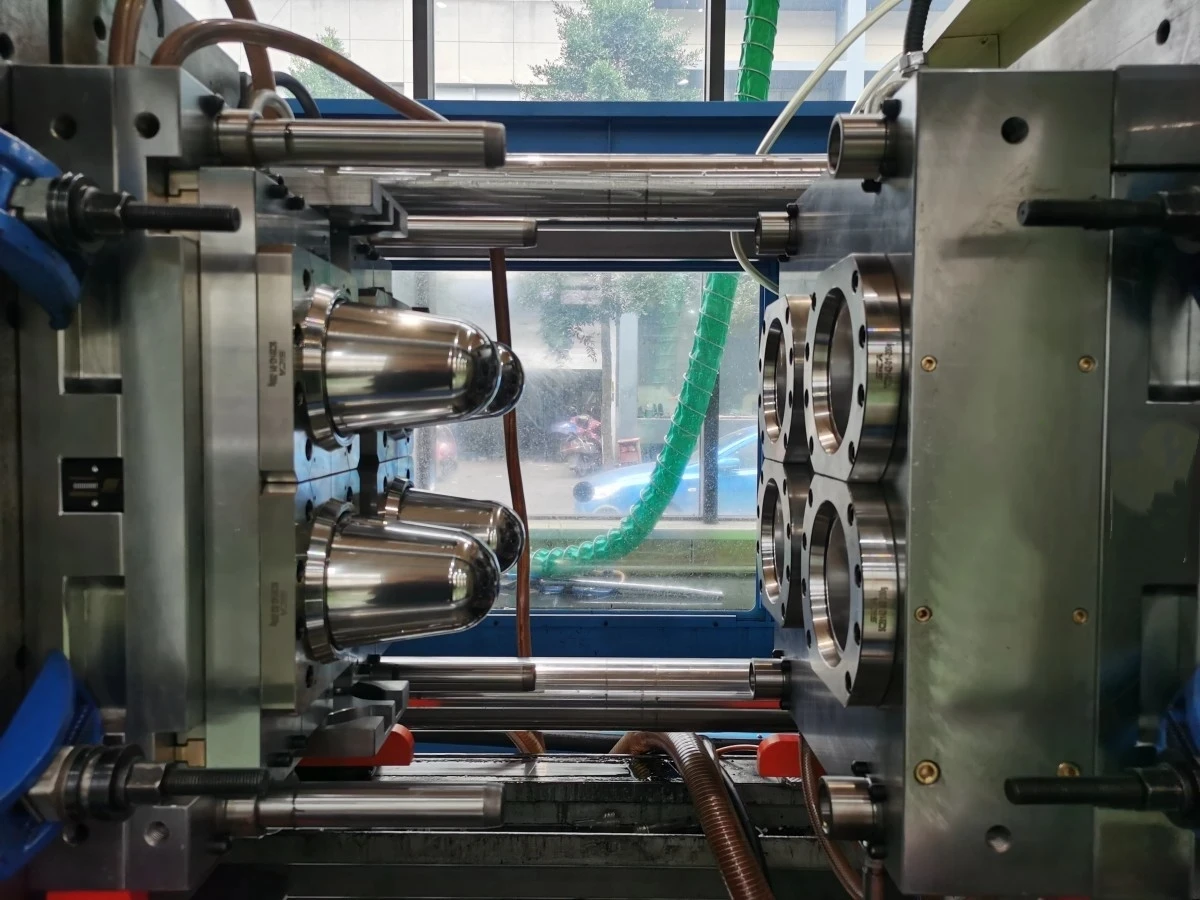

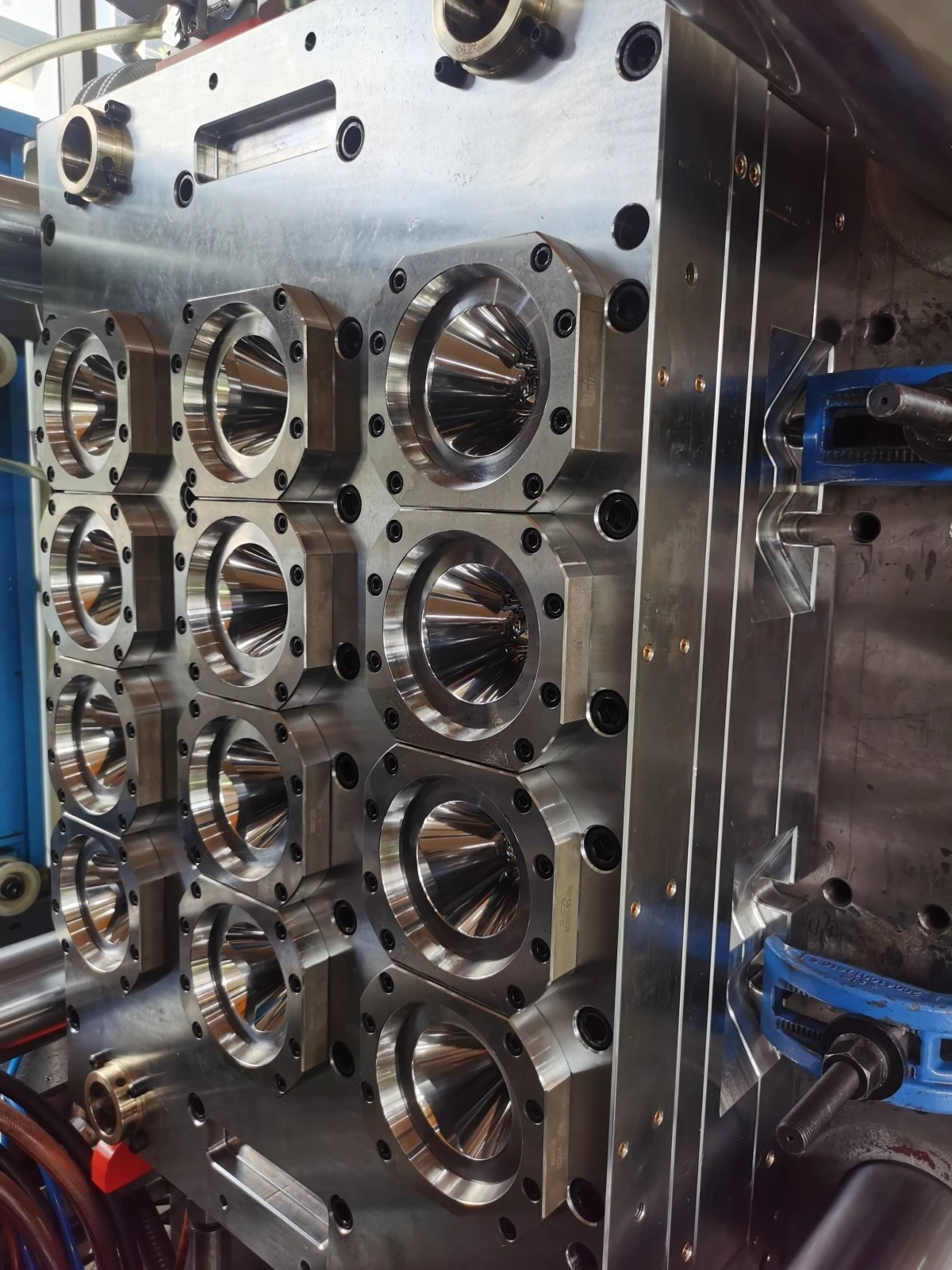

Standard bottle preforms use molds with 32, 48, or even 144 cavities. However pet jar preforms typically use much lower cavity counts. The maximum for pet jars is usually 8, 12, or 16 cavities depending on the preform size and wall thickness. Why the difference? Pet plastic jars have wider openings and thicker walls. Each cavity requires more material and longer cooling time, so fewer cavities per mold.
 |
 |
 |
Why pet jar manufacturing machines need a special screw
PET material is hygroscopic and prone to crystallization. Therefore a standard screw can cause poor melting and high acetaldehyde (AA) levels. A specialized pet jar manufacturing machine uses a PET screw that increases plasticizing speed and shot weight while lowering the plasticizing temperature and AA value. So the result is better transparency for pet plastic jars with lids and lower shrinkage.
Key Applications of PET Jar Injection Molding Machines
- Food packaging including kitchen plastic food storage containers
- Pet plastic containers for cosmetics and personal care
- Industrial and household chemical plastic pet cans
Food packaging applications

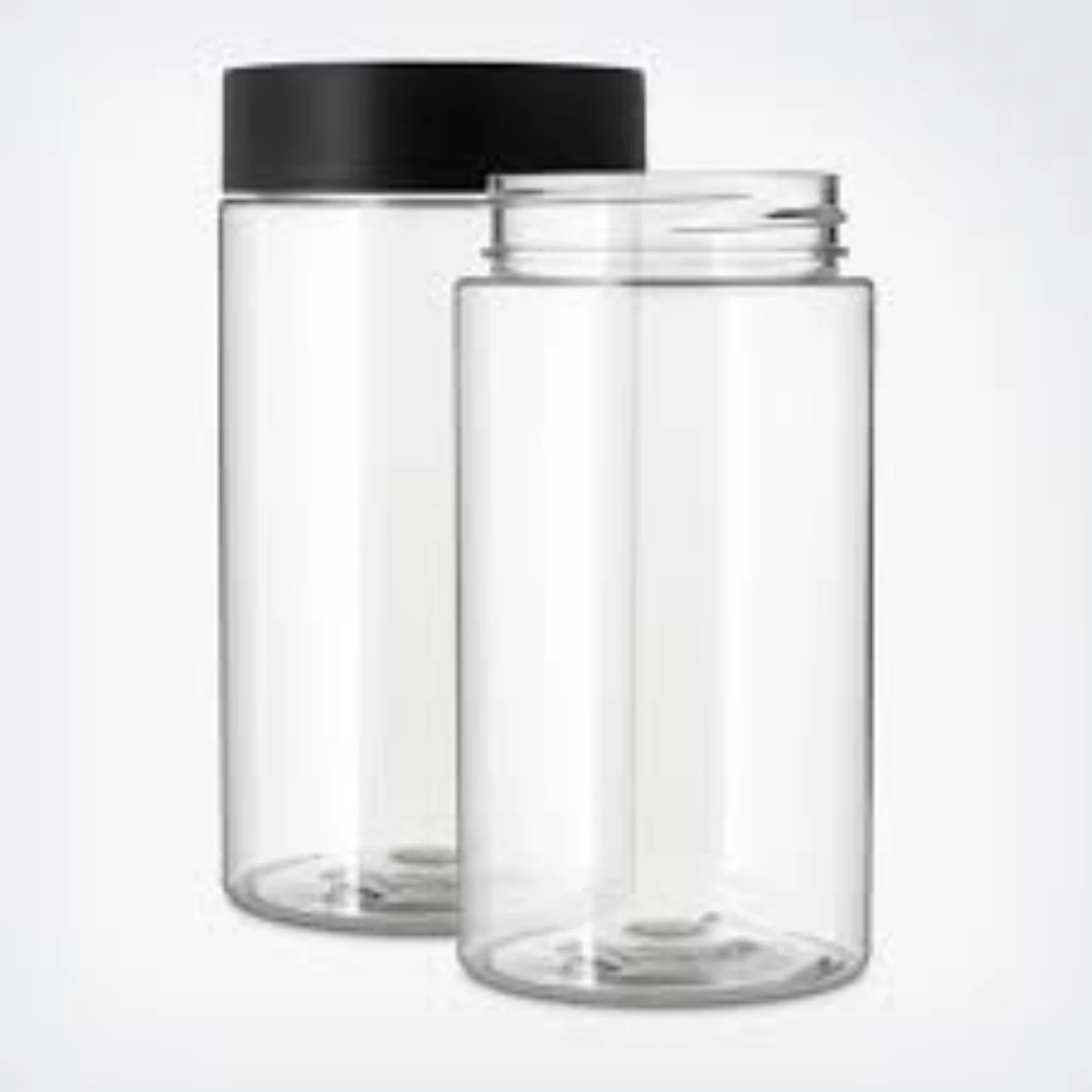

Food manufacturers widely use pet jars for products like jams, honey, peanut butter, dried fruits, and nuts. PET material offers excellent barrier properties, shatter resistance, and transparency. Moreover pet plastic jars are lightweight, which reduces shipping costs compared to glass. They are also ideal for kitchen plastic storage containers, plastic kitchen storage containers, and kitchen plastic containers for storage — especially when customers need pet jars with lids for airtight sealing.
Cosmetics and personal care jars

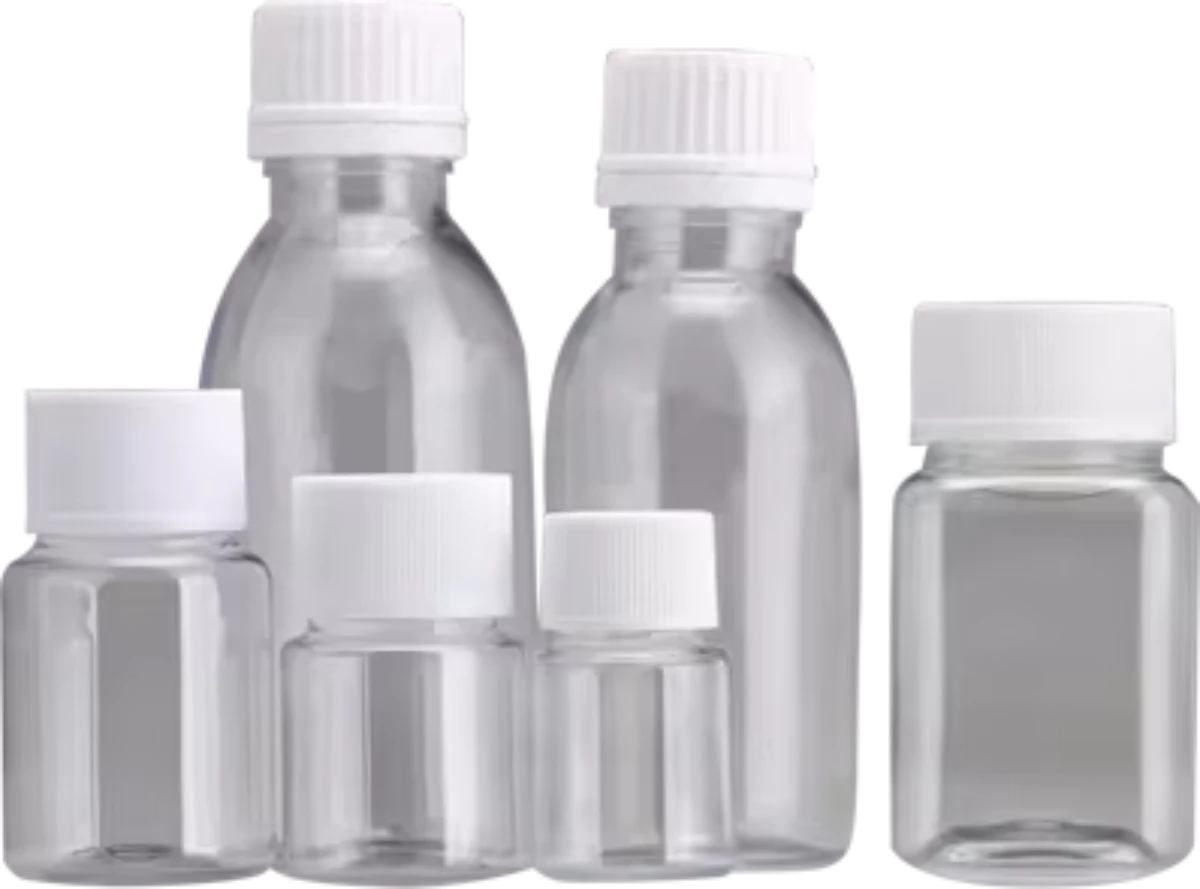

Cosmetic brands prefer pet plastic containers for cream jars, lotion bottles, shampoo containers, and body wash bottles. Pet jars with clarity showcase the product inside, and their chemical resistance ensures compatibility with various formulations. Many suppliers choose pet plastic jars with lids for lotion and cream packaging.
Industrial and household chemical containers
Pet jars also serve industrial applications such as cleaning agents, detergents, and chemical storage. In addition plastic pet cans and pet plastic can designs are common for paints, solvents, and powders. Pet plastic can options provide durability and recyclability for household chemical packaging.
Technical Advantages of PET Jar Injection Molding Machines
- Energy efficiency for pet jar bottle production
- High precision for wide mouth pet jars
- Low AA value for pet jar bottle plastic container quality
Energy efficiency for pet jar bottle production
Servo motor control systems can save 30% to 50% of total energy compared to traditional hydraulic machines. In addition all-electric control systems eliminate hydraulic fluid entirely, achieving 40% to 60% lower energy consumption. This makes pet jar making machines more sustainable for producing pet jar bottle and pet jar bottle plastic container units.
High precision for wide mouth pet jars
Low-inertia PET injection molding machines achieve injection repeatability as precise as 2‰. Injection response speed doubles while saving 25% of energy. This precision is critical for pet wide mouth jars and wide mouth pet jars, where consistent wall thickness prevents deformation during filling and sealing.
Low AA value for pet jar bottle plastic container quality
High AA (acetaldehyde) levels can affect taste in food-grade PET packaging. Therefore pet jar manufacturing machines use specially designed screws to lower plasticizing temperature and AA generation. The result is superior transparency for pet plastic containers, minimal haze, and improved shrinkage control — essential for pet jars with lids that require tight thread accuracy.
Sustainability Trends in PET Jar Manufacturing
- Recycled PET (rPET) for pet plastic containers
- Bio-based plastics for kitchen plastic storage containers
Recycled PET (rPET) for pet plastic containers
Using recycled PET bottles as raw material reduces production costs and helps recycle plastic waste. Modern pet jar making machines can process up to 100% rPET, making sustainable pet jars, pet plastic jars, and plastic pet cans achievable at scale.
Bio-based plastics for kitchen plastic storage containers
Bio-based plastics such as PLA and bio-PET are gaining traction in packaging markets. PLA offers compostability and maintains quality comparable to conventional PET. So machines that support multiple resin types give pet jar manufacturers the flexibility to produce kitchen plastic storage containers, plastic kitchen storage containers, and kitchen plastic food storage containers using eco-friendly materials.
Haichen’s PET Jar Injection Molding Solutions (Success Stories)
- Real production cases for pet jars, pet plastic can, and wide mouth pet jars
- Why Haichen is a trusted pet jar manufacturer and china pet jar making machine supplier
Real production cases for pet jars, pet plastic can, and wide mouth pet jars
Haichen Machinery is an experienced pet jar manufacturer and a leading china pet jar making machine provider, specializing in preform design, mold production, and pet jar manufacturing machine solutions. Below are real production cases from Haichen’s customer applications.
| Application | Neck Size | Weight | Material | Cavities | Machine | Cycle Time |
|---|---|---|---|---|---|---|

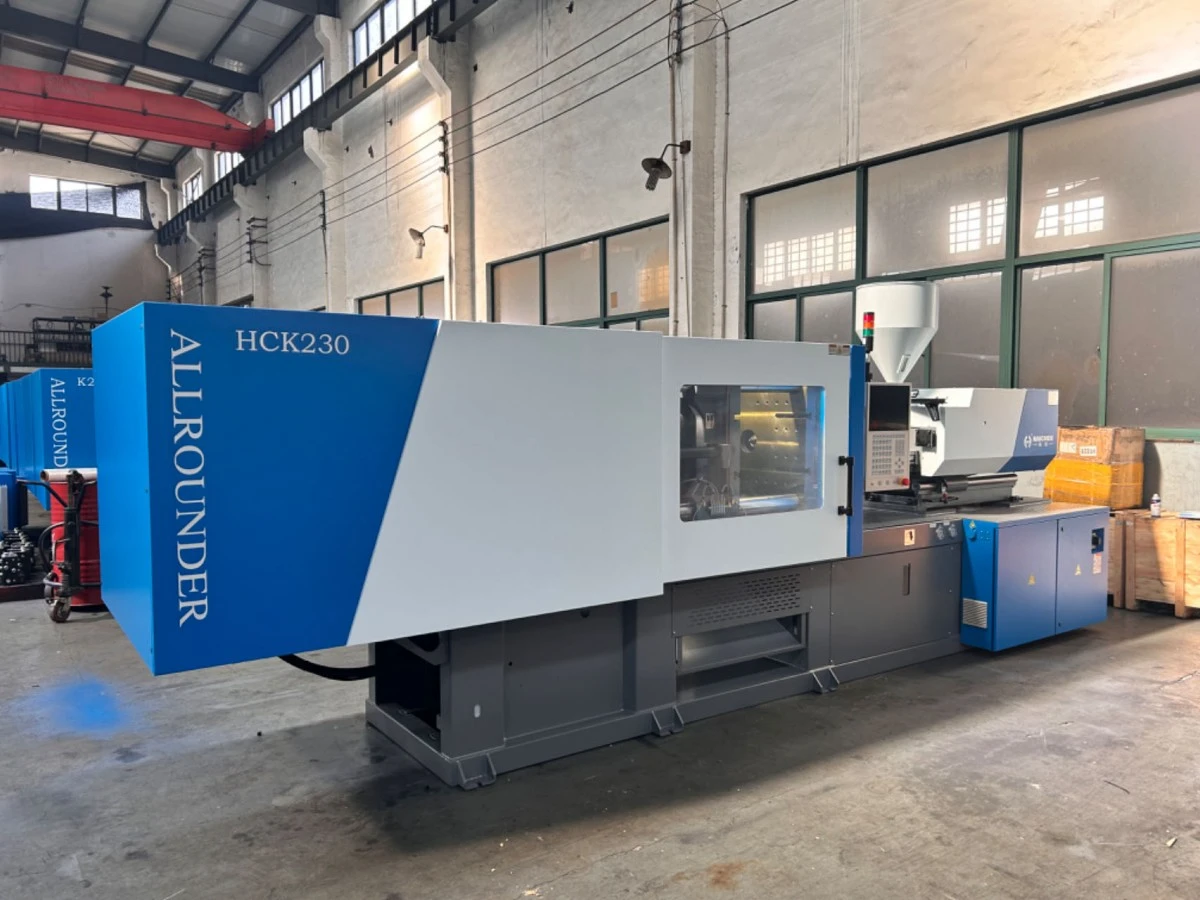

| Pet jar (standard) | 83 mm | 60 g | PET | 4 | HCK 230 | 19 sec |
| 1 gallon square pet plastic jar preform | 120 mm | 220 g | PET | 2 | HCK 410 | — |
| Wide mouth pet jar preform | 120 mm | 190 g | PET | 4 | HCK 270 | — |
| Pet plastic can preform | 100 mm | 150 g | PET | 4 | HCK 310 | — |
Why Haichen is a trusted pet jar manufacturer and china pet jar making machine supplier
Haichen’s pet jar making machines have been exported to multiple countries, helping numerous factories efficiently produce pet jars, pet plastic jars with lids, plastic pet cans, and kitchen plastic food storage containers. Their expertise covers a wide range of preform sizes and applications.
Therefore, if you are planning a production line to produce pet jar bottles, pet bottle jars, pet plastic jars, or 1-gallon square pet plastic jars, please contact Haichen Machinery for a customized pet jar manufacturing machine solution tailored to your needs.
A pet jar injection molding machine is essential for producing high-quality pet jars, pet plastic jars, pet jars with lids, and even plastic pet cans efficiently. This article has explained how pet jar making machines work, their key applications including kitchen plastic storage containers, and technical advantages such as energy savings, precision for wide mouth pet jars, and low AA values.
We also covered selection criteria for pet jar manufacturers, sustainability trends, and real production examples from Haichen — a professional china pet jar making machine supplier. To succeed in pet jar manufacturing, choose a specialized pet jar manufacturing machine with the right screw design, servo energy system, and cavity configuration for your target products.
