Multi color injection molding Machine

Multi color injection molding machine

Haichen is a double color injection molding machine factory in China

– Production process of two-colour injection molded products
– What is the machine for two-colour injection moulded products?
– How many types of injection moulding machines for two-colour products are there?
– How to choose the right injection molding machine for two-colour products?
– Injection moulding machine price for two-colour products
– Haichen injection moulding machine for two-colour products
– Application areas of two-color injection molding machine
– Various kinds of Haichen two-color injection moulding machine products.

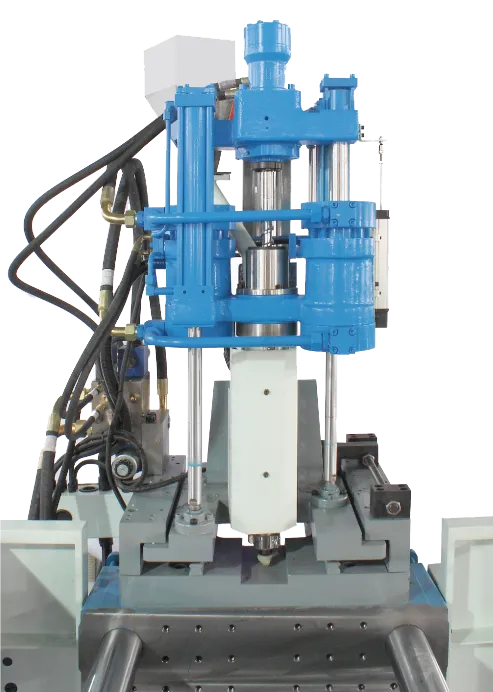

The two injection units on the dual color injection molding machine are its core components, each with independent functions and structures. These two injection units are the same in use and structure as ordinary material barrels, but they each have channels and both have opening and closing valves, both of which are connected to nozzles. During the production process, after plasticizing the raw materials in two barrels, the required proportion of materials and the order of discharge for each barrel are controlled through the opening and closing valves.
Specifically, the two injection units of the dual color injection molding machine can work simultaneously to meet different color mixing effect designs and interlayer requirements. This design allows the two-color injection molding machine to flexibly choose different injection modes according to production needs, and can inject separately in order according to needs. In addition, the two injection units of the dual color injection molding machine can also achieve high-speed injection molding, ensuring low inertia requirements and high operating accuracy.
The two injection units on the dual color injection molding machine achieve efficient material management and precise injection control through independent control systems and opening and closing valves, thereby meeting the production needs of complex dual color products.

The template turntable on the dual color injection molding machine is one of its key components, mainly used to achieve the rotation and positioning of the mold, in order to complete the dual color injection molding process. Specifically, the template turntable includes a rear template, turntable, turntable shaft, pressure piece, adjustment piece, and driving mechanism.
During the working process, the turntable rotates through the control of the driving mechanism. Before the turntable rotates, the driving mechanism drives the adjusting element to move axially forward in the front section of the annular groove, causing the front of the adjusting element to push the turntable away from the rear template and against the first top plate. This can ensure that the turntable maintains appropriate friction with the template during rotation, thereby ensuring smooth rotation of the mold and smooth opening and closing of the mold.
The design of the template turntable enables the two-color injection molding machine to produce two different materials of products in one molding process. For example, the activity template is equipped with a rotating disc that rotates 180 degrees back and forth, which can accommodate two pairs of dual color molds to produce products of two different materials. This design not only improves production efficiency, but also shortens the molding cycle.

DEVICE CONFIGURATION

Injection Unit

Nitride screw barrel

High torque low speed oil motor

Reverse cable device

Lengthened nozzle

Device for preventing screw rod from moving in advance

at low temperature

Three stage injection process control

Two stage pressure and melt control

Injection position linear electronic ruler control

Sol motor speed display

The proportion of melt pressure control

Hydraulic Unit and Others

Automatic lubricating device

Imported hydraulic components

High temperature alarm device

Clamping Unit

Five point double machine hinge clamping device

Hydraulic single pumping unit

Automatic mould adjusting device

Hard chrome plated alloy steel column

Low pressure mold protection setting

Dual electrical and mechanical safety settings

Hopper and electric eye control cycle begins

Top out stop, multiple top out, shake out the top

Three stage mode locking stroke control

Linear electronic ruler control mode locking position

Control Unit

Time radio control

PID temperature control

Manipulator control interface

OPTIONAL DEVICE

Injection Unit

Special screw barrel

Sol cylinder thermal insulation cover

Lengthened nozzle

Energy storage device special express

Movable unloading hopper device

Standard discharge hopper device

Clamping Unit

Blow device

Hydraulic safety lock device

Hydraulic multi core pulling system device

Control Unit

Installation of mechanical and electrical wiring

PVC fan device

Hydraulic and other parts

Semi closed loop control system

Cooling water flow meter and thermometer

Low oil level alarm device

The temperature induced regulation of cooling

Water control device

RULES OF GUARANTEE PERIOD FOR HAICHEN
PLASTIC INJECTION MOLDING MACHINE
WELCOME TO USE “HAICHEN” PLASTIC INJECTION MOLDING MACHINE,HERE UNDER IS THE RULES OF GUARANTEE PERIOD
1.THE STARTING DATE FOR GUARANTEE PERIOD WILL BE CALCULATED FROM THE DATE THE MACHINE IS SHIPPED FROM HAICHEN
2.CUSTOMER CAN ENJOY THE FOLLOWING GUARANTEE SERVICE DURING THE GUARANTEE PERIOD ONLY UNDER THE CONDITION THAT THEY OPERATE HAICHEN MACHINE CORRECTLY WITH RIGHT PLASTIC MATERIAL AND NORMAL OPERATION.
3.THE CATEGORY AND INSTRUCTION OF THE MAIN GUARANTEE ITEMS (REFER TO THE FOLLOWING 1ST FORM AND 2ND FORM).

1ST FORM
ITEMS	GUARANTEE PERIOD	ITEMS	GUARANTEE PERIOD	ITEMS	GUARANTEE PERIOD
CONTROLLER	12 MONTHS	DIRECTIONALVALVE PUMPS(VICKERS/USA)	12 MONTHS	PLATEN	24 MONTHS
CONTACTOR	6 MONTHS	DIRECTIONALVALVE PUMPS(SUNNY/USA)	18 MONTHS	TIE BAR	24 MONTHS
HEATING BAND	6 MONTHS	HYD MOTOR	18 MONTHS	OTHER MECHANICAL PARTS	12 MONTHS
OTHER ELECTRICAL ELEMENT	12 MONTHS	OTHER HYDRAULIC COMPONENT	12 MONTHS
NOTE: FOLLWING POINTS ARE NOT INCLUDED DURING WARRANTY TERMS
1. MACHINE IS DAMAGED BY INCORRECT OPERATION;
2.THE PLATEN AND TIE BAR ARE DAMAGED DUE TO THE UNPARALLEL MOLD MOUNTED ON THE
MACHINE OR NET&BOLT OF TIE BAR IS REMOVED WITHOUT AUTHORIZATION;
3.THE CONTACTION AREA BETWEEN MOLD AND PLATEN IS LESS THAN SPECIFIED INSTRUCTION IN
USER MANUAL OR IRREGULAR PRACTICES OF BOLT CAUSE THE PLATEN TO BE DAMAGED;
4.THE HYDRAULIC PARTS GOT DAMAGED AFTER USING POOR QUALITY HYDRAULIC OIL;
5.LACK OF LUBRICATION OR DAILY MAINTENANCE, DURING THE MACHINE RUNNING;

2ND FORM
		GUARANTEE PERIOD FOR BARREL&SCREW
RAW MATERIAL		NITRIDING	STAINLESS	BIMETAL
			STEEL	GENERAL	SPECIAL
NON-ENGINEERING PLASTIC MATERIAL&PROCESSING WASTAGE PP/PE		6 MONTHS	12 MONTHS	12 MONTHS	18 MONTHS
ENGINEERINGPLASTIC (PURE RETRACTION MATERIAL) ABS PC PA PMMA		6 MONTHS	12 MONTHS	12 MONTHS	18 MONTHS
ENGINEERINGPLASTIC (PURE RETRACTION MATERIAL) PBT PPS		4 MONTHS	6 MONTHS	5 MONTHS	12 MONTHS
15-30% FIBERGLAS OR LESS THAN 30% CALCIUM CARBORATE IN THE PLASTIC MATERIAL		3 MONTHS		5 MONTHS	12 MONTHS
30-40% FIBERGLAS OR LESS THAN 30% CALCIUM CARBORATE IN THE PLASTIC MATERIAL		2 MONTHS		3 MONTHS	10 MONTHS
FLAME RETARDANT OR CORROSINE ADDITIVE THE PLASTIC MATERIAL POM\PVC		3 MONTHS	10 MONTHS		18 MONTHS
NOTE :FOLLOWING POINTS ARE NOT INCLUDED DURING WARRANTY TERMS
1.THE HEATING TEMPERATURE HAS NOT ARRIVED PROPERLY WHEN OPERATING THE MACHINE OR
THERE ARE METAL ADULTERANT IN THE PLASTIC MATERIAL WHICH MAKES SCREW DAMAGED;
2.THE MACHINE RUNS DESULTORILY OR THE SCREW GOT EROSION WITHOUT IN TIME DISLODGING;
3.THE SCREW TYPE IS NOT SUITABLE FOR THE RAW MATERIAL PROCESSING ON THE MACHINE DUE TO
WRONG INFORMATION GIVEN WHILE IN PURCHASE.

DURING THE GUARANTEE PERIOD,THE SELLER WILL PROVIDE THE BUYER CORRESPONDING PARTS TO EXCHANGE THE DAMAGED PARTS FREE OF CHARGE UNDER THE CONDITION THAT THE BUYER RUN THE MACHINE CORRECTLY. IF NECESSARY, THE SELLER WILL ALSO SEND ENGINEER TO THE BUYER’S FACTORY TO SOLVE THE QUALITY PROBLEMS. EXPENSES OF ENGINEERS BE BORN BY WHICH PARTY DEPEND ON THE ACTUAL SITUATION.
