Plastic Bucket Injection Molding Machine

Plastic Bucket injection molding Machine

HCK series plastic bucket injection molding machines are specialized for PP and HDPE plastic buckets.

Use this plastic bucket injection moulding machine with different bucket injection molds, it can produce different shapes of buckets, like:

5-gallon water buckets
Trash bin
Plastic paint bucket
Garbage bin
Water bin
Plastic buckets with handles
Plastic buckets with lids

Haichen success case for Plastic Bucket injection molding Machine

Injection molding is a process that melts plastic from solid to liquid and back to solid after cooling. It’s done to create a new shape as the mold’s inner.

How to produce the buckets?
Plastic buckets are injection molded. The melted plastic granules (PP or HDPE) are injected into the bucket mold, and solidify after cooling.

Haichen has provided more than 200sets for water buckets, paint pail molding line. The machine HCS series with a servo-hydraulic system for tonnage 200 – 1000 tons, suitable for the production of buckets.

Case 1:

Plastic bucket: 20L
Bucket material: HDPE
Bucket weight: 598g
Diameter: 310mm
Diameter: 260-265mm,

Machine model: HCK310
20L plastic bucket uses the HCK 310 injection molding machine.

Contact Us

Case 2:

Plastic bucket: 100L
Bucket material: PP
Weight:
Diameter: 570 mm,

Machine model: HCK800
Haichen HCK 800 ton machine testing 100L bucket for user.

Contact Us

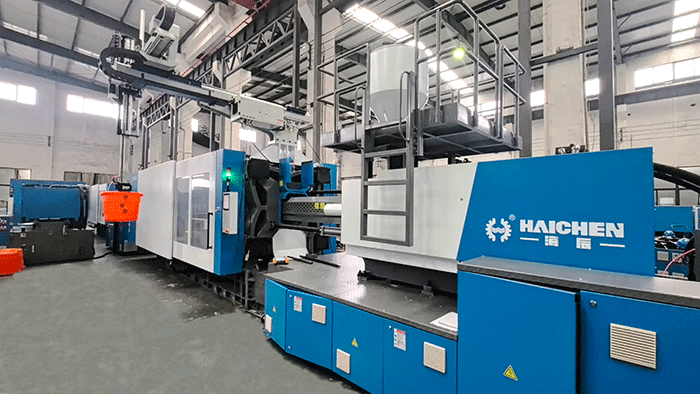

The injection molding machine is producing the bucket

Case 3:

Plastic bucket: 12L
Bucket material: HDPE
Bucket weight: 327g
Height: 230mm
Diameter: 280mm

Machine model: HCK310
Eject way: By hand or robot

Contact Us

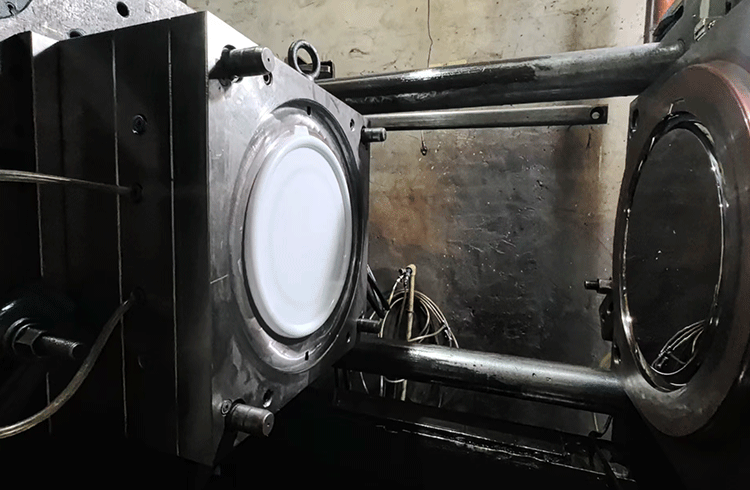

Case 4:

Lid for bucket
Bucket material: PP
Diameter: 230 mm,

Machine model: HCK180

Contact Us

Haichen machine user of plastic bucket

Customers select our Haichen plastic bucket making machine with serieS which can help save 20-80% energy and bring economic benefits

The customer bought one of our Haichen plastic bucket making machines three years ago. Our competitive bucket machine price helps him save cost and get more profit

This client selected HDPE(high-density polyethylene)as raw material to produce his bucket. As HDPE is a durable, non-reactive thermoplastic, it’s more suitable to produce big trash bins.

This is trash bin mould, to produce this deep type of rubbish bin trash can, it must be carefully calculated to ensure the open stroke. The distance should be at least double as height. Otherwise, it’s hard to fetch the bucket from the mould.

Haichen HCK310 plastic bucket making machine is hot sale in Central Asian countries.

5-gallon buckets produced by our 310-ton plastic bucket-making machine. Space between tie bars 670x620mm

3-gallon bucket 230ton Haichen plastic bucket making machine with this mould

5 gallon bucket, with one cavity mould, use a cold runner manner

Why choose Haichen plastic bucket injection molding machine?

Clamping unit assembling

Haichen machine stock

Injection uint testing

machine barrel screw

Haichen

Mold area

Haichen is a manufacturer of injection molding machine

Choose Haichen as your injection molding machine Manufacturer for disposable cutlery. With years of experience and a commitment to quality, we have helped countless factories succeed through efficient and effective production.

Haichen can supply spoon injection molding machines, we would also like to share the information about :

plastic spoon fork making machine price
Plastic knife making machine manufacturers in China
Manufacturing process of disposable cutlery injection molding machine
What is the machine for the production of disposable cutlery?

Contact Us

Haichne has 20 years of experience!

Haichen PET injection molding machine suit for Plastic bottle preform.

The machine control is easy with 21 different languages on the control screen.

Haichen is a manufacturer of injection molding machines. We supply the PET machines from 160 ton to 560 ton. The clamping force is from 3300KN to 30000KN.

Haichen plastic bucket injection molding machine for export

Haichen HCK310 injection molding machine

310 ton machine loading

For the economic production of bucket solution, our 310ton plastic bucket making machine is a better choice

HCK150 Haichen injection molding machine

280 ton machine loading

280-ton plastic bucket making machine, open stroke 400mm, is suitable to produce small plastic buckets

230 ton machine loading

230ton plastic water bucket injection molding machine of the servo series-energy saving

Haichen HCK310 injeciton molding machine

310 ton machine loading

310ton plastic bucket making machine with CE certificate

280 ton machine loading

Haichen 280ton plastic bucket injection machine. With 2800KN clamping force, 620x570mm space between tie bar, 560mm open stroke

600 Ton Machine Export

Haichen Machinery Overseas Business Haichen HCK600 bucket injection molding machine with bucket mold.

1800KN Machine Shipment

180 tons injection molding machine export Haichen HCK180 ton plastic bucket injection molding machine is shipped to South America.

220 Ton molding machine

HCK220ton paint bucket making machine loading process

HCK280 Machine Loading

Haichen 280ton plastic bucket injection machine. With 2800KN clamping force, 620x570mm space between tie bar, 560mm open stroke

150ton plastic bucket making machine

150ton plastic bucket making machine, open stroke 400mm is suitable to produce small plastic buckets
