Plastic chair production line equipment includes injection molding machines, molds, and auxiliary units working together to turn raw plastic pellets into finished chairs. For plastic chair manufacturers, an efficient production line means consistent product quality, low scrap rates, and optimal cycle times.
As a specialized injection molding machine manufacturer, HAICHEN Machinery understands that the key to a successful line lies in precise equipment selection and process parameter matching. This article provides an overview of the plastic chair production line from three aspects: equipment composition, the injection process, and investment cost.
Equipment in a Plastic Chair Production Line
A complete plastic chair production line mainly consists of the following equipment:

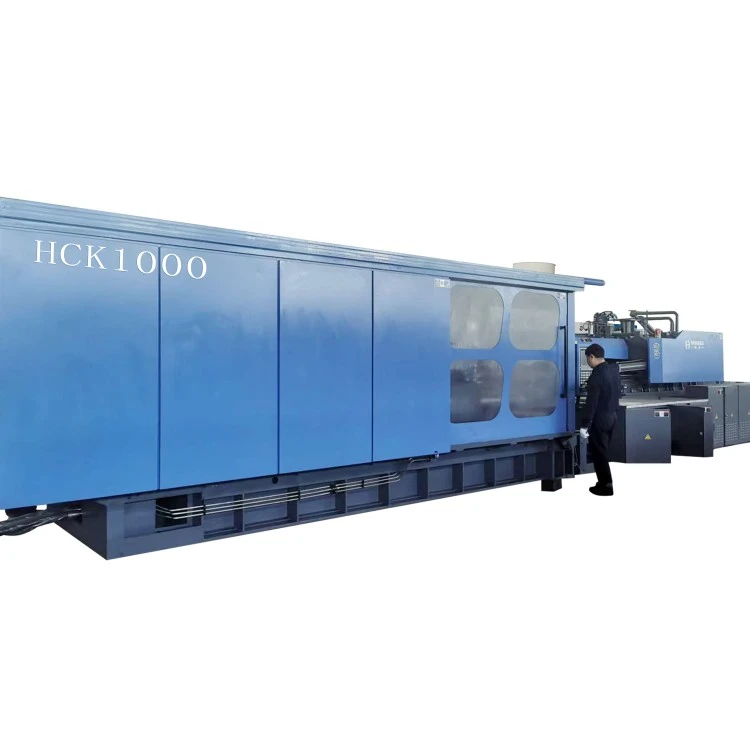

Injection Molding Machine
The heart of the production line. Chair production typically requires large-tonnage machines, with clamping forces generally ranging from 700 to over 1,200 tons, depending on the chair’s size, wall thickness, and material. For example, a common PP dining chair often runs on a 700-ton machine, while a transparent PC crystal chair needs at least 1,000 tons. HAICHEN offers a wide range of servo-hydraulic and all-electric injection molding machines to meet various chair production needs.

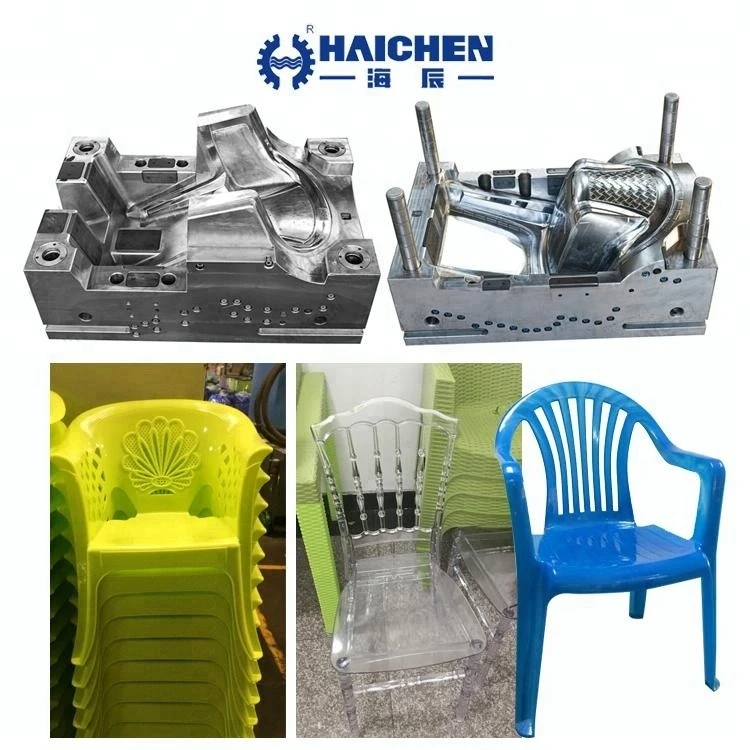

Custom Molds
Chair molds are usually made of hardened steel for monobloc or stackable designs. The mold structure includes cavity, core, cooling channels, and ejection mechanisms. Mold cost is significant, but it directly determines the chair’s appearance and dimensional accuracy. HAICHEN can provide mold design advice to help customers optimize gate placement and cooling layouts.
Auxiliary Equipment

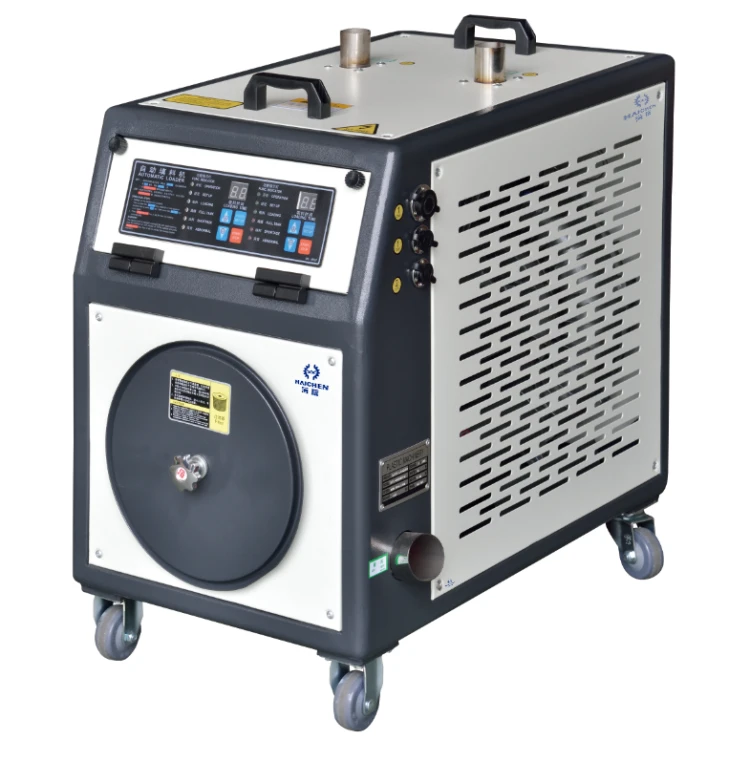

- Automatic Loader – continuously feeds dried plastic pellets into the machine hopper

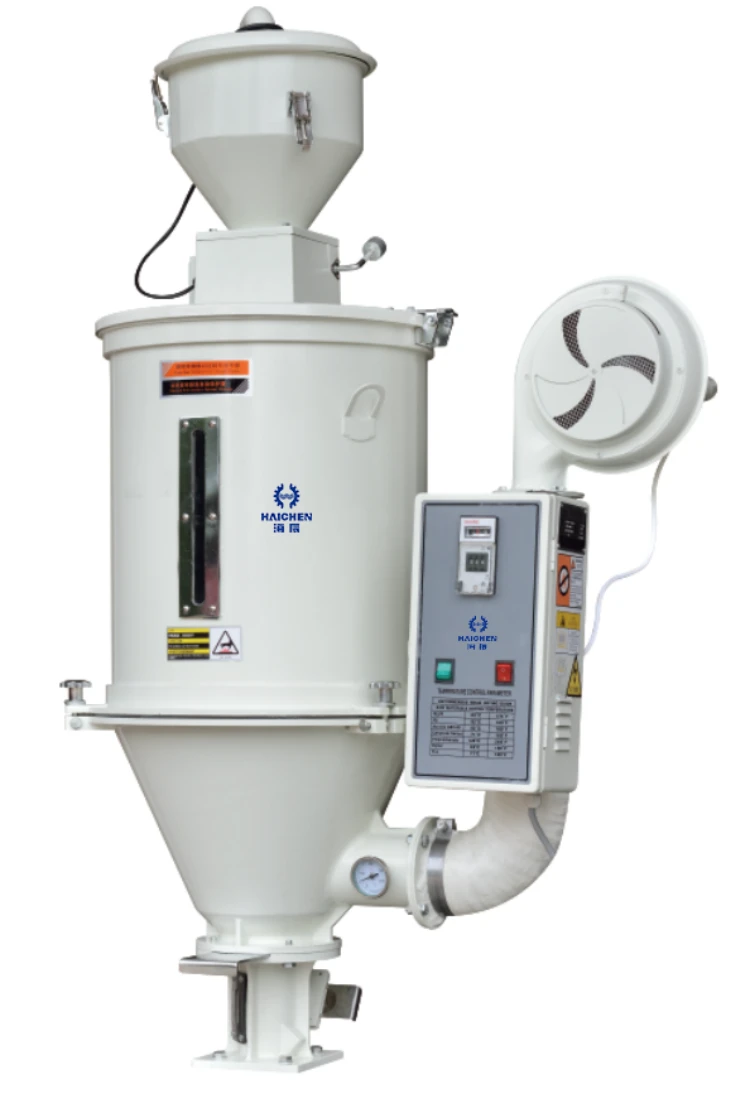

- Dehumidifying Dryer – removes moisture from materials like PP, PC, and ABS to prevent surface defects

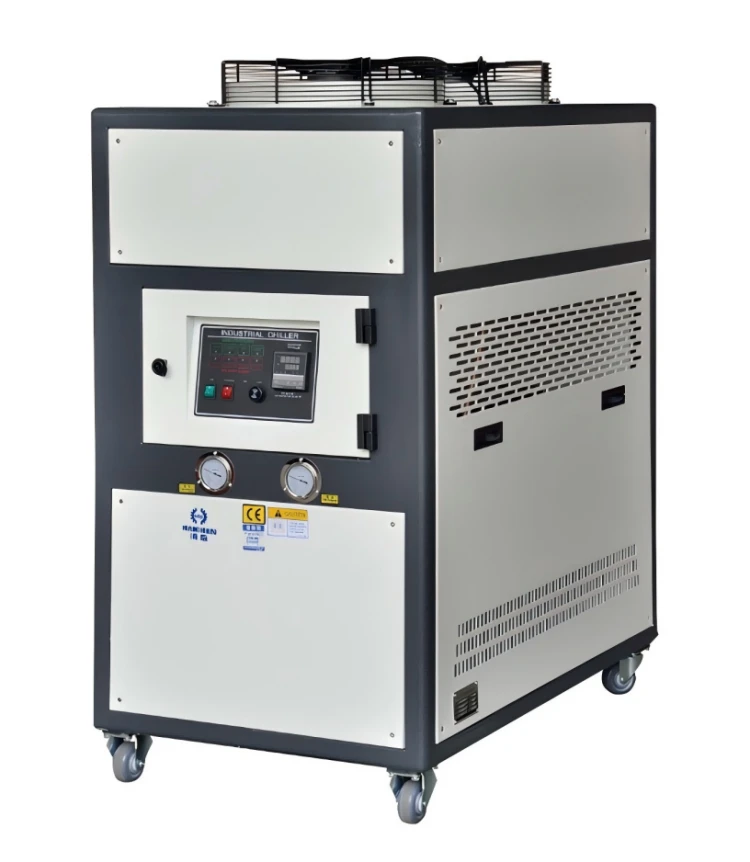

- Chiller – regulates mold temperature, accelerates cooling, and shortens cycle time
- Color Mixer – homogeneously blends color masterbatch with base resin for consistent coloring

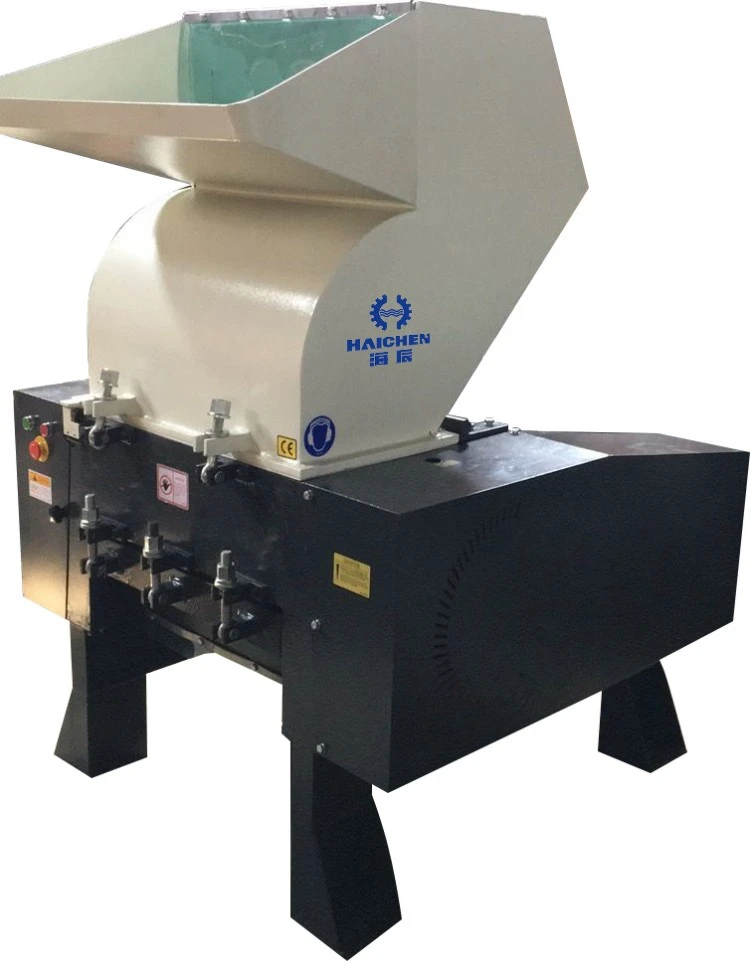

- Crusher / Granulator – grinds sprues, flash, and defective parts for recycling, reducing material costs
These machines work together to form a fully automatic or semi-automatic production line capable of 24/7 operation.
 |
 |
 |
 |
Injection Molding Process for Plastic Chair Production
The injection molding of plastic chairs is a cyclic process, with a typical cycle time of 45-90 seconds (depending on chair weight and wall thickness). The main steps are:
Material Preparation and Plasticizing
- Plastic pellets (commonly PP, ABS, HDPE, or PC) are mixed with colorants and additives in the hopper
- The mixture enters the heated barrel, where a reciprocating screw melts and homogenizes it into a uniform melt
Clamping and Injection
- The mold is closed and clamped under high pressure (clamping force is selected based on material fluidity and projected area)
- The screw moves forward, injecting the melt into the mold cavity at controlled multi-stage speeds and pressures to ensure complete filling without flash
Holding Pressure (Packing)
After injection, holding pressure is applied to compensate for material shrinkage during cooling, preventing sink marks and voids. The holding time usually accounts for a significant portion of the cycle.
Cooling
Coolant (water or oil) circulates through the mold’s built-in cooling channels to rapidly solidify the plastic. Cooling time is the longest phase and directly affects total cycle time. Using a chiller can reduce cooling time by 20-30%.
Mold Opening and Ejection
The mold opens, and ejector pins push the finished chair out. For complex shapes (e.g., rocking chairs with curved legs), ejector pins must be strategically placed to avoid marks.
Trimming and Finishing
Robots or manual operators remove the chair, trim flash and rough edges, and inspect surface quality.
Quality Control and Packaging
Inspectors check chairs for load-bearing strength and visual defects. Workers stack, wrap, and prepare approved products for shipment.
The injection machine’s PLC control system automatically monitors and regulates the entire process, ensuring consistent quality cycle after cycle.
Plastic Chair Production Line Cost Range
Investing in a plastic chair production line involves three main cost components: the injection molding machine, the mold, and auxiliary equipment. The following are general reference ranges (actual prices vary by brand, specification, configuration, and market conditions):
| Item | Estimated Price Range (USD) |
|---|---|
| Injection Molding Machine (700–1,200 tons, servo or hydraulic) | Approx. $80,000 – $250,000 (high-end all-electric models may exceed $300,000) |
| Custom Steel Mold (single- or multi-cavity) | Approx. $20,000 – $60,000 (more for complex or large-size molds) |
| Auxiliary Equipment Package (dryer, loader, chiller, crusher, etc.) | Approx. $10,000 – $30,000 |
| Total Investment for One Complete Line | Roughly $50,000 – $200,000 (fully automated high-end lines may exceed $300,000) |
The prices above are for preliminary budgeting only. HAICHEN can provide accurate equipment selection and quotations tailored to your specific product (chair type, material, and output targets).
HAICHEN Production Cases
HAICHEN builds complete lines for all chair categories. Below are documented examples from actual customers, covering both standard and special chairs.
| Chair Type | Size (mm) | Material | Machine Tonnage | Runner Type |
|---|---|---|---|---|
| PC chair (chiavari style) | 457×398×919 | PC | 1000T | Cold runner |
| PP chair (stacker or dining) | 470×430×990 | PP | 700T | Cold runner |
| PE bus seat (outdoor) | 400×380×390 | HDPE | 700T | Hot runner |
| ABS stadium seat | Mold 650×650×750 | ABS | 700–1000T | Cold runner |
HAICHEN machines also produce plastic rattan chairs, rattan design chairs, outdoor rocking chairs, white plastic chairs, folding chairs, children’s plastic chairs, and lawn chairs with equal efficiency.
Frequently Asked Questions
Q: What equipment is needed for a plastic chair production line
A: A complete plastic chair production line includes an injection molding machine (700-1,200 tons), custom steel mold, and auxiliary equipment such as dryer, loader, chiller, color mixer, and crusher.
Q: What is the typical cycle time for plastic chair production
A: Cycle time typically ranges from 45 to 90 seconds depending on chair weight, wall thickness, and material. Cooling is the longest phase, accounting for 60-80% of the total cycle.
Q: How much does a plastic chair production line cost
A: Total investment for one complete line ranges from $50,000 to $200,000 for standard configurations. High-end fully automated lines may exceed $300,000.
Q: What tonnage injection molding machine is needed for chairs
A: Most plastic chairs require 700 to 1,200 tons of clamping force. PP dining chairs typically run on 700-ton machines, while PC crystal chairs need at least 1,000 tons.
Q: Does HAICHEN supply equipment for different chair types
A: Yes. HAICHEN has supplied machines for PP dining chairs, PC chiavari chairs, PE bus seats, ABS stadium seats, rocking chairs, folding chairs, and rattan-style chairs.
