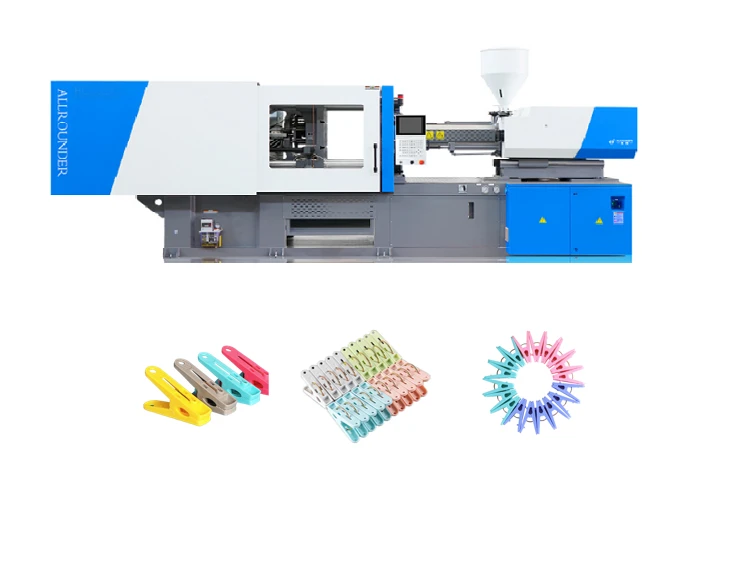

The plastic clothespin injection molding machines price from $10,000 to $38,000, depending on different injection machine tonnage and mold size.

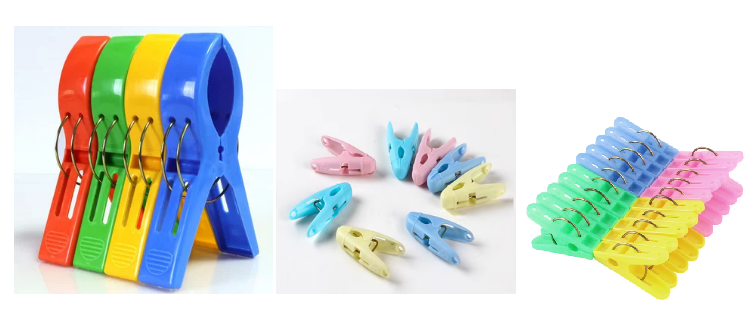

Within this price range, Haichen is one professional plastic clothespins injection molding machine manufacturer can offer the economic HCS injection molding machines and the general model HCK injection molding machines, ranging from 110 tons to 230 tons. Prices mainly vary based on production a plastic clothespin injection molding machine tonnage, mold design and machine models. Plastic clothespins are small household items we use widely. Our product range covers standard spring-type clothespins, all-plastic spring clothespins, and two-color clothespins. Both household and industrial sectors have huge demand for these goods.
That’s why manufacturers need reliable injection molding equipment. Machine performance determines both product quality and production volume.
Different clothespin designs also require custom molds. For example, all-plastic spring clothespins have a hinge structure that needs high molding accuracy . This means they need injection machines with precise temperature control and multi-stage injection functions. Multi-cavity molds can greatly boost production efficiency . Choosing the right plastic clothespin making machines also helps cut long-term operating costs.
Main Factors Decide Plastic Clothespins Molding Machine Price
-
Machine Tonnage
-
Mold Cavity Quantity
-
Machine Drive System
-
Mold Material Quality
Machine Tonnage
To begin with, tonnage for a plastic clothespin injection moldilng machine decides basic clamping force levels. In truth, different clothespin designs have different sizes, so they require different clamping force values . For example, large industrial clothespins need higher machine tonnage. Conversely, small standard clothespins fit small plastic clothespin injection molding machine tonnage equipment . Accordingly, tonnage directly sets the base price of the machine. For most clothespin production, the plastic clothespin making machines from 110 to 310 tons are usually sufficient.

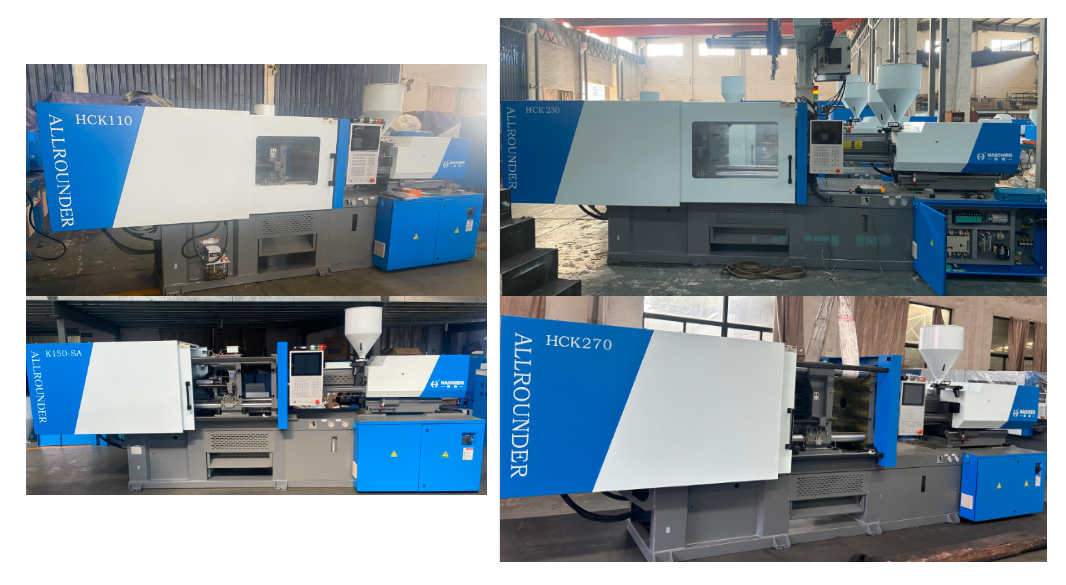

There are two types of injection molding machines for plastic clips . Haichen, who with more than 10years experience of plastic clothespins injection molding machine manufacturer will supply professional suggestion.
Mould Cavity Quantity

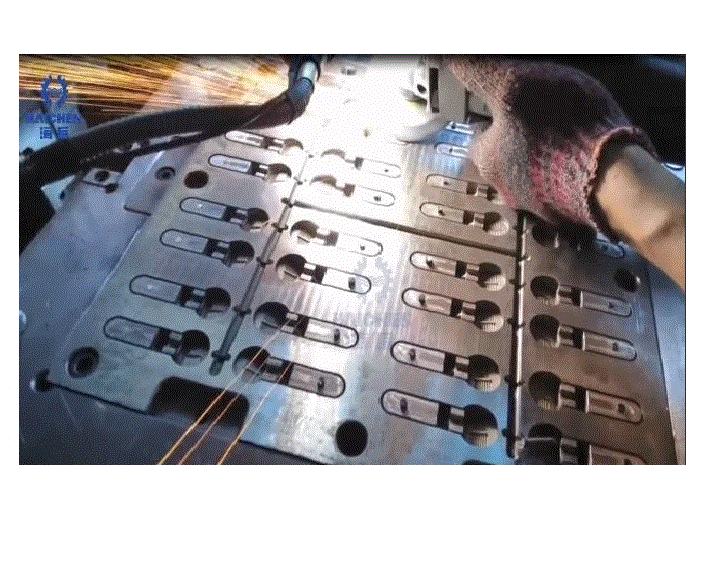

Furthermore, mold cavity count changes daily production capacity . Obviously, more cavities can produce more parts in one cycle. At the same time, multi-cavity molds raise overall device budgets. For this reason, factories balance output needs and total costs. In general, mass production prefers 10 to 20 cavity molds or more for clothespin sleeves, clothespins, and hooks.
Machine Servo System
Lastly, drive systems and upgrades raise final device costs . In fact, servo, hybrid, and full-electric injection molding machines have distinct price gaps. Basically, standard servo-hydraulic models have moderate market prices. On the contrary, full-electric machines come with higher costs. Equally, advanced injection systems offer better precision and stability, especially for all-plastic spring clothespins that need strict mold temperature control.
Mould Material Quality
Meanwhile, mold material also affects the whole production budget. For instance, hardened steel molds last longer than ordinary molds. Undoubtedly, high-quality steel molds reduce replacement frequency. As a result, they cut long-term operating costs for factories.
Small plastic clothespins injection machines price
-
180Ton injection molding machine
-
Price
180Ton injection molding machine

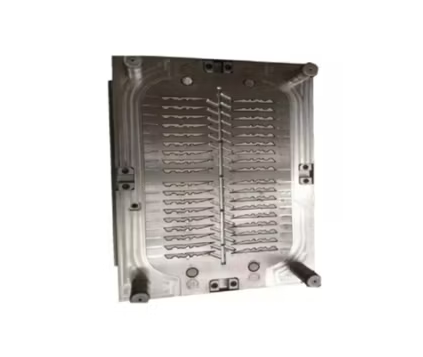

First, standard clothespin molds need stable precision molding tools. For instance, a 4-cavity or 8-cavity mold for standard spring-type clothespins fits a standard 180ton Haichen molding unit. In addition, this setup supports high-volume production. Equally, the multi-cavity design stabilizes finished product quality. Thus, it fits mass production for regular clothespins.
| HCK180 PLASTIC INJECTION MOLDING MACHINE | ||||
| INJECTION UNIT | ||||
| ITEM | UNIT | A | B | C |
| INJECTION UNIT | ||||
| Screw diameter | mm | 40 | 45 | 50 |
| Screw L/D ratio | L/D | 24.7 | 22.0 | 19.8 |
| Shot volume(theoretical) | cm3 | 283 | 358 | 442 |
| Injiection weight(ps) | g | 257 | 326 | 402 |
| oz | 9.1 | 11.5 | 14.2 | |
| Injection pressure | Bar | 2231 | 1763 | 1428 |
| Injection rate | cm3/s | 157 | 199 | 245 |
| Plasticizing capacity | g/s | 16 | 22 | 26 |
| Screw speed （Max.) | r/min | 220 | ||
| CLAMPING UNIT | ||||
| Clamping force | Kn | 1800 | ||
| Space between tie bars(W×H) | mm | 520×470 | ||
| Platens size | mm | 740×690 | ||
| Opening stroke | mm | 460 | ||
| Min.Mold height | mm | 200 | ||
| Max.Mold height | mm | 550 | ||
| Distance between platens(daylight) | mm | 1010 | ||
| Ejector stroke | mm | 130 | ||
| Ejector force | Kn | 50 | ||
| OTHERS | ||||
| Systerm pressure | Bar | 175 | ||
| Pump motor | Kw | 25 | ||
| Heating power | Kw | 14.0 | ||
| Oiltank cubage | L | 160 | ||
| Machine dimension(L×W×H) | m | 5.2×1.3×1.8 | ||
| Machine weight | t | 6.0 | ||
Price
Primarily, basic 120-140 ton units cost $10,000 to $14,800 . Moreover, servo motors lift costs by ten to fifteen percent. Besides, multi-cavity steel molds cost $8,000 to $12,000. Equally, steel molds deliver longer service life for mass runs. Furthermore, it reduces frequent mold replacement costs. Accordingly, it brings stable profits for small molding factories.
Large plastic clothespins injection machines price
-
230Ton injection molding machine
-
Price
230Ton injection molding machine
All plastic clothespins need higher precision molding tools. For example, plastic clothes pegs and plastic clothes clips have a hinge structure that requires high molding accuracy . As a result, it requires a 230-ton Haichen injection machine. Additionally, the machine must have multi-stage injection and precise temperature control functions . Moreover, Haichen know how to fix common defects in plastic clothes clip injection molding.Thus, it boosts output and cuts per-unit production time for complex clothespin designs. So, higher clamping force and precision ensure flawless molding results.
| HCK230 PLASTIC INJECTION MOLDING MACHINE | ||||
| INJECTION UNIT | ||||
| ITEM | UNIT | A | B | C |
| INJECTION UNIT | ||||
| Screw diameter | mm | 45 | 50 | 55 |
| Screw L/D ratio | L/D | 24.4 | 22.0 | 20.0 |
| Shot volume(theoretical) | cm3 | 398 | 491 | 594 |
| Injiection weight(ps) | g | 362 | 447 | 541 |
| oz | 12.8 | 15.8 | 19.1 | |
| Injection pressure | Bar | 2299 | 1862 | 1539 |
| Injection rate | cm3/s | 192 | 237 | 286 |
| Plasticizing capacity | g/s | 23 | 27 | 33 |
| Screw speed （Max.) | r/min | 200 | ||
| CLAMPING UNIT | ||||
| Clamping force | Kn | 2300 | ||
| Space between tie bars(W×H) | mm | 570×520 | ||
| Platens size | mm | 820×770 | ||
| Opening stroke | mm | 520 | ||
| Min.Mold height | mm | 220 | ||
| Max.Mold height | mm | 570 | ||
| Distance between platens(daylight) | mm | 1090 | ||
| Ejector stroke | mm | 150 | ||
| Ejector force | Kn | 80 | ||
| OTHERS | ||||
| Systerm pressure | Bar | 175 | ||
| Pump motor | Kw | 30 | ||
| Heating power | Kw | 16.4 | ||
| Oiltank cubage | L | 200 | ||
| Machine dimension(L×W×H) | m | 5.8×1.4×1.9 | ||
| Machine weight | t | 7.3 | ||
Price
Chiefly, standard 170-230 ton machines cost $22,500 to $38,000. Furthermore, servo-hybrid or full-electric versions cost more than basic hydraulic units. Specifically, hybrid models range from $30,000 to $45,000. Meanwhile, 16-20 cavity complex molds cost $12,000 to $18,000. Correspondingly, complex molds fit diverse clothespin accessory needs. Additionally, this mold structure supports customized clothespin designs. It meets varied demands for household and industrial clothespins worldwide.
We are professional plastic clothespin injection molding machine manufacturer. Please contact us for more details like production line for producing plastic clothespins.
