Choosing the right injection molding machine tonnage is one of the most important decisions when setting up a toy production line.
This decision affects not only the initial investment but also production efficiency, product quality, and long-term operating costs.
This guide uses Haichen Machinery‘s actual production cases and machine parameters to help you understand the right injection molding machine tonnage for your specific needs.
What Does Injection Molding Machine Tonnage Really Mean?
| Core Technical Parameter | Definition | Unit | Impact on Production |
|---|---|---|---|
| Clamping Force (Tonnage) | Maximum force to keep the mold closed during injection | Tons (t) | Determines the maximum part size that can be produced |
| Shot Weight | Maximum plastic weight that can be injected in a single cycle | Grams (g) | Determines how much product can be produced per cycle |
| Tie-bar Distance | Space between the four vertical bars holding the mold | Millimeters (mm) | Determines the maximum mold size the machine can accommodate |
Choosing the Right Injection Molding Machine Tonnage – Two Real Cases
| Case | Product | Material | Machine | Tonnage | Cycle Time | Why This Tonnage? |
|---|---|---|---|---|---|---|
| Toy Tea Set | Tea pot base, body, lid, handle | PP | HCK-230 | 230 tons | 15s | 160-200 ton range recommended for this product family; HCK-230 provides optimal balance of capacity and efficiency |
| Candy Box Train | Train body and base | PP | HCK-280 | 280 tons | 15s | Larger components require higher clamping force; HCK-280 meets the increased demand |
Case 1 – Why 230 Tons for the Toy Tea Set?

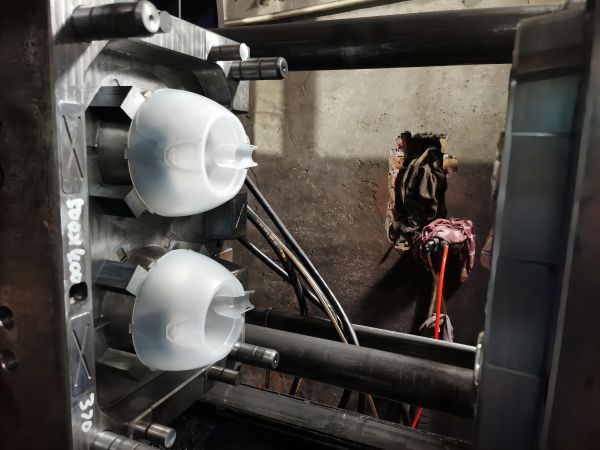

The toy tea set consists of four components: base, body, lid, and handle. Each part requires specific cavity arrangements (2 cavities for most components, 4 cavities for the handle). The HCK-230 provides the ideal injection molding machine tonnage for this application
| Requirement | HCK-230 Specification |
|---|---|
| Clamping Force | 230 tons – sufficient for this product family |
| Shot Weight | Up to 541g (PS) – enough for multi-cavity production |
| Tie-bar Distance | 570×520 mm – accommodates the tea set molds |
| Cycle Time | 15 seconds – ensures efficient production |

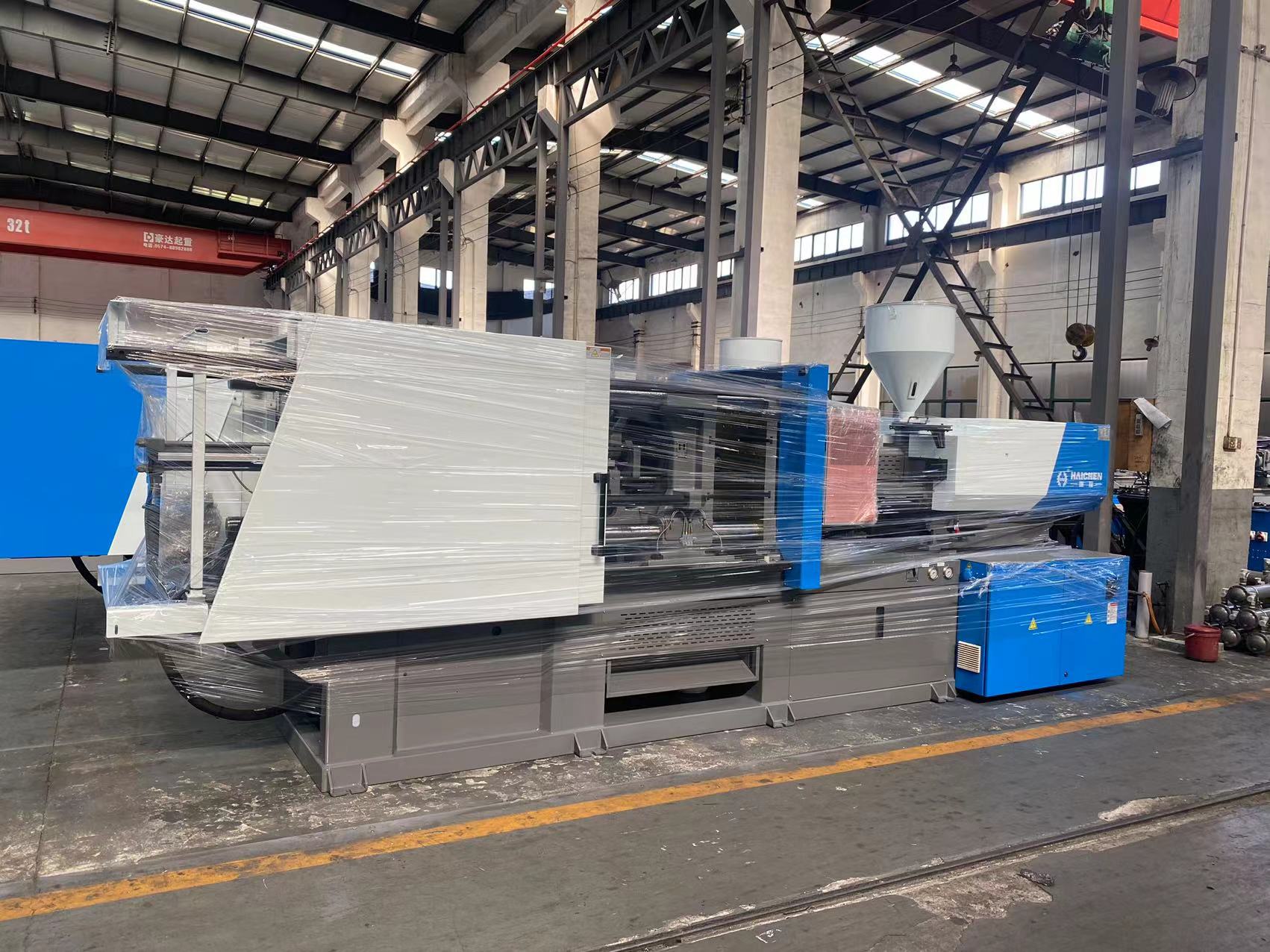

Case 2 – Why 280 Tons for the Candy Box Train?
The toy train candy box has larger components (body and base) compared to the tea set, requiring a higher injection molding machine tonnage:
| Requirement | HCK-280 Specification |
|---|---|
| Clamping Force | 280 tons – meets higher clamping force demand |
| Shot Weight | Up to 906g (PS) – handles larger shot volume |
| Tie-bar Distance | 620×570 mm – accommodates larger molds |
| Cycle Time | 15 seconds – maintains same efficient cycle |
Injection Molding Machine Tonnage Selection Guide
| Tonnage Range | Model Series | Suitable Toy Applications | Production Scenarios |
|---|---|---|---|

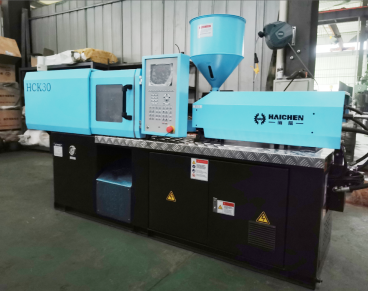

| Small (30-100 tons) | HCK-30 to HCK-100 | Small precision parts, micro toys, building block accessories | Startups, R&D prototyping, small-batch custom production |

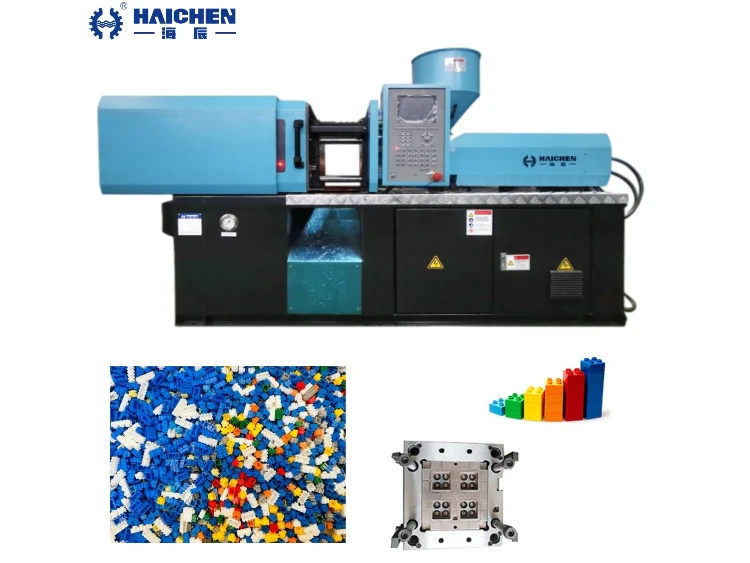

| Medium (110-280 tons) | HCK-110 to HCK-280 | Toy tea sets, candy boxes, toy trains, action figures, building blocks | Established manufacturers, stable mid-to-high volume orders |
| Large (310 tons and above) | HCK-310 to HCK-1500+ | Large toys, multi-cavity high-volume molds, beach toys, slide components | Mass production facilities, stable high-volume demand |
Common Misconception About Injection Molding Machine Tonnage
| Misconception | Correct Approach |
|---|---|
| Choose the largest tonnage to “future-proof” your business | Calculate required clamping force based on projected area × material factor |
| Invest in high tonnage machines early for future orders | Start with a versatile medium machine (e.g., HCK-180 or HCK-230), add higher tonnage as business stabilizes |
| Focus only on purchase price | Consider total lifecycle costs: energy, maintenance, mold changeover efficiency, and floor space |
How to Determine the Right Injection Molding Machine Tonnage
| Step | Specific Action |
|---|---|
| 1. Product Analysis | Client provides product drawings, mold parameters, production targets, and material type |
| 2. Clamping Force Calculation | Determine tonnage requirements based on projected area × material factor |
| 3. Model Recommendation | Match the most suitable model based on tie-bar space, shot weight, and mold height requirements |
| 4. Long-term Planning Advice | Incorporate 3-5 year business growth projections to allow for future expansion |
Haichen Machinery’s Support for Your Injection Molding Machine Tonnage Selection
| Service Stage | Specific Content |
|---|---|
| Product Evaluation | Analyze product drawings, mold specifications, and production volume targets |
| Tonnage Calculation | Calculate required clamping force using projected area × material factor |
| Model Matching | Recommend the optimal HCK series model based on tonnage, tie-bar space, and shot weight |
| Future Planning | Provide guidance on scalable production capacity for business growth |
