Selecting the right toy injection molding material is the most critical first step in any toy production project.
Manufacturers use ABS, PP, and PE most often in toy production, yet each material offers distinct properties and application scenarios.
The right toy injection molding material directly determines a toy’s safety, durability, aesthetics, and market performance.
Therefore, this guide uses real production cases from Haichen Machinery to help toy manufacturers understand these three materials and choose the right one for their needs.

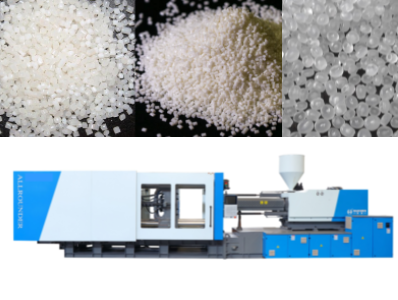

Comparison of the Three Major Materials for Toy Injection Molding
| Material | Key Properties | Typical Toy Applications | Molding Process Considerations | Limitations |
|---|---|---|---|---|
| ABS | High impact resistance, high rigidity, excellent surface finish | Building blocks, toy car bodies, action figures | Requires precise temperature control, wear-resistant screw | Poor weather resistance, not suitable for long-term outdoor use |
| PP | Lightweight, chemical resistance, excellent fatigue resistance | Candy box toys, toy tea sets, living hinge components | High shrinkage rate requires precise mold design | Difficult to print or bond on surface |
| PE | Soft, chemically stable, lowest cost | Rattles, squeeze toys, toy bottles | Suitable for high-volume simple-structure products | Very low surface energy, difficult to paint or bond |
Real Production Cases Using Different Toy Injection Molding Materials

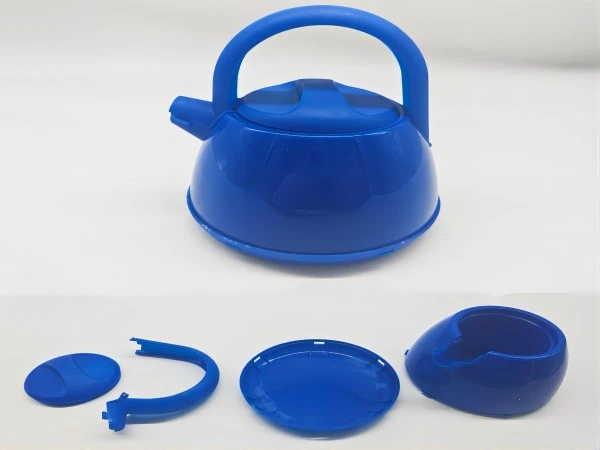

Case 1: PP as the Toy Injection Molding Material for a Tea Set
| Component | Size (mm) | Material | Cavities | Machine | Cycle Time |
|---|---|---|---|---|---|
| Tea Pot Base | 150×18.6 | PP | 2 | HCK-230 | 15s |
| Tea Pot Body | Ø154×81.9 | PP | 2 | HCK-230 | 15s |
| Tea Pot Lid | 85×26×85 | PP | 2 | HCK-230 | 15s |
| Tea Pot Handle | 140×36×101 | PP | 4 | HCK-230 | 15s |
This toy tea set is designed for packing candy for children. First, PP material enters the HCK-230 servo injection molding machine. The machine then melts the material and injects it into the mold. After cooling, the mold opens and ejects the finished component. The four components share the same 15-second cycle time, and the multi-cavity mold design—4 cavities for the handle—boosts production efficiency. Consequently, PP’s food-safe properties make it the ideal toy injection molding material for candy-contact toys.

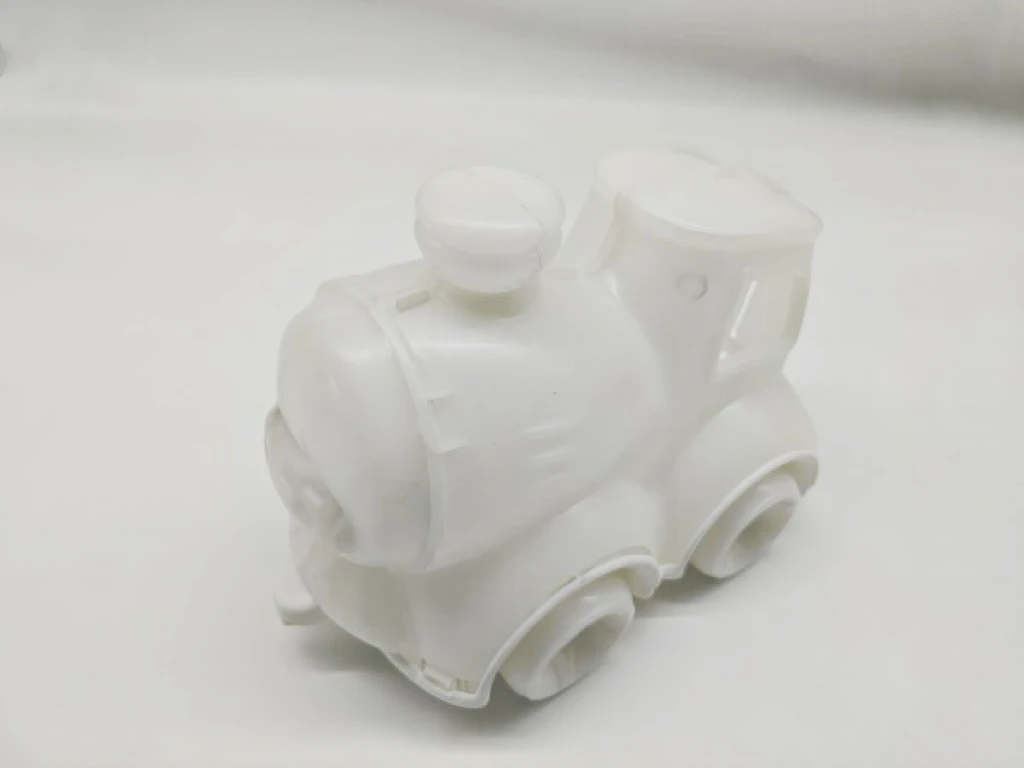

Case 2: PP as the Toy Injection Molding Material for a Candy Box Train
| Component | Material | Cavities | Machine | Cycle Time |
|---|---|---|---|---|
| Train Body | PP | 2 | HCK-280 | 15s |
| Train Base | PP | 2 | HCK-280 | 15s |
This toy train candy box requires a slightly larger machine than the tea set. Specifically, Haichen Machinery configured the HCK-280 (280 tons) for this application to meet the higher clamping force requirements of the train components. Both the body and base use PP as the toy injection molding material and maintain the same 15-second cycle time, ensuring stable and efficient production.

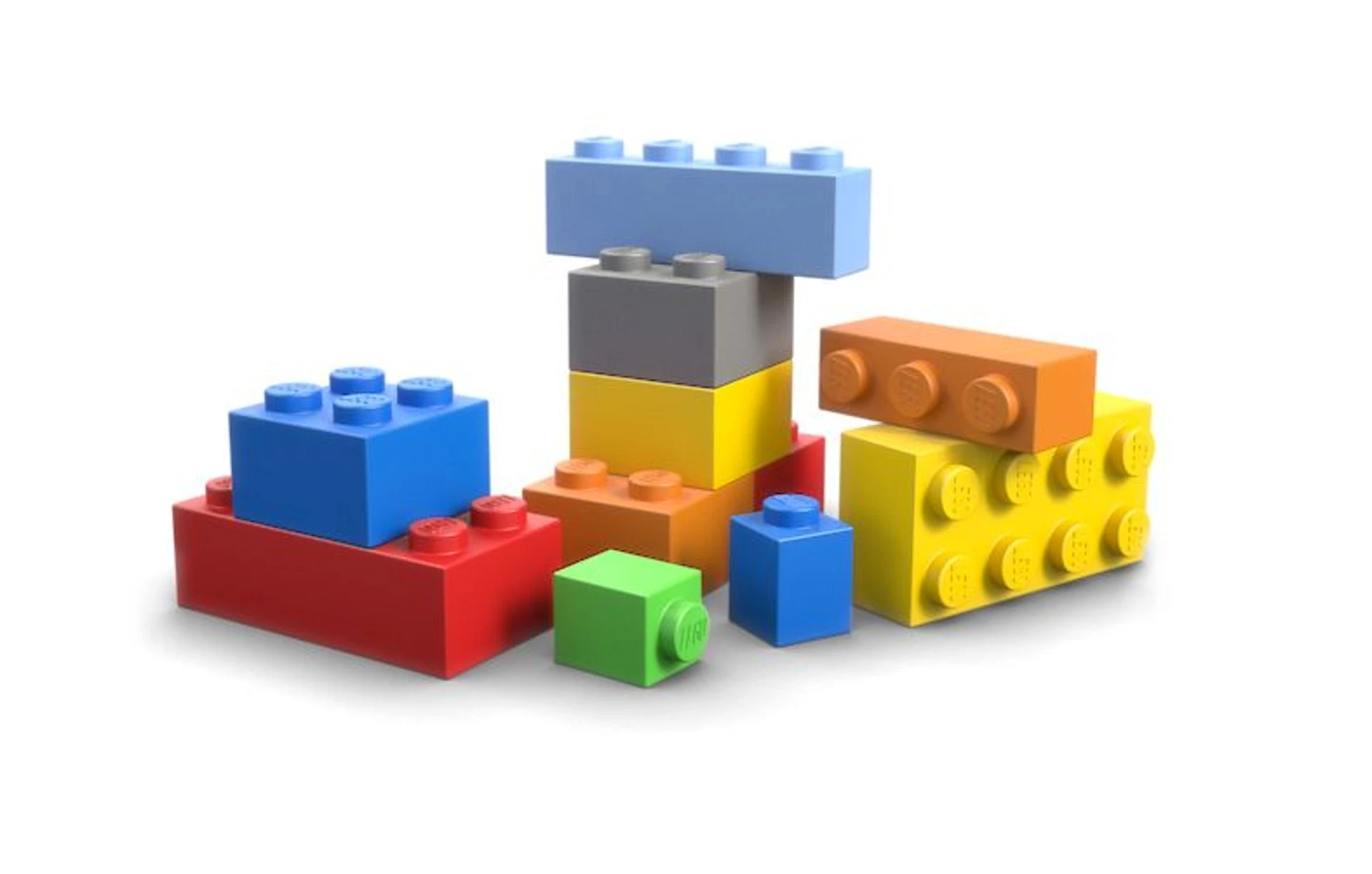

Case 3: ABS as the Toy Injection Molding Material for Building Blocks
| Material | Key Properties | Typical Applications | Machine Recommendation |
|---|---|---|---|
| ABS | Dimensionally stable, drop-resistant, wear-resistant | Splicing building blocks, Lego-compatible toys | HCK series with precision temperature control |
ABS is the preferred toy injection molding material for producing high-quality building blocks. Its dimensional stability ensures every block fits together perfectly. Additionally, its drop and wear resistance guarantee long-lasting play value. For this reason, Haichen Machinery’s HCK series servo injection molding machines provide the precise temperature control and robust screw design needed to process ABS effectively.
How to Choose the Right Toy Injection Molding Material
| Decision Factor | Key Question | Recommended Material |
|---|---|---|
| Usage Environment | Will it be frequently dropped or subjected to impact? | ABS |
| Usage Environment | Will it contact food (e.g., candy containers)? | PP |
| Usage Environment | Will it be used outdoors? | PP or PE |
| Cost & Volume | High-volume, low-margin products? | PP |
| Cost & Volume | Premium positioning with emphasis on texture? | ABS |
| Process Matching | PP/PE high shrinkage rate requires precise mold design | Recommend HCK series servo models |
| Process Matching | ABS requires precision temperature control and wear-resistant screw | Recommend HCK series servo models |
Haichen Machinery’s Support for Your Toy Injection Molding Material Selection
| Service Stage | Specific Content |
|---|---|
| Material Analysis | Provide material recommendations based on product application, usage environment, and production targets |
| Equipment Matching | Recommend suitable HCK series servo models based on selected material and production volume |
| Process Optimization | Assist in adjusting temperature control, screw configuration, and other parameters to ensure stable production |
